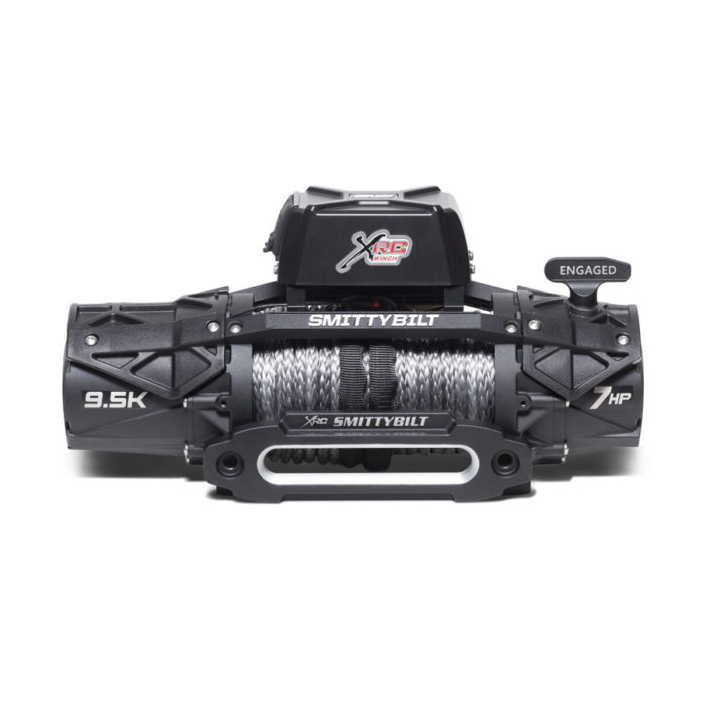

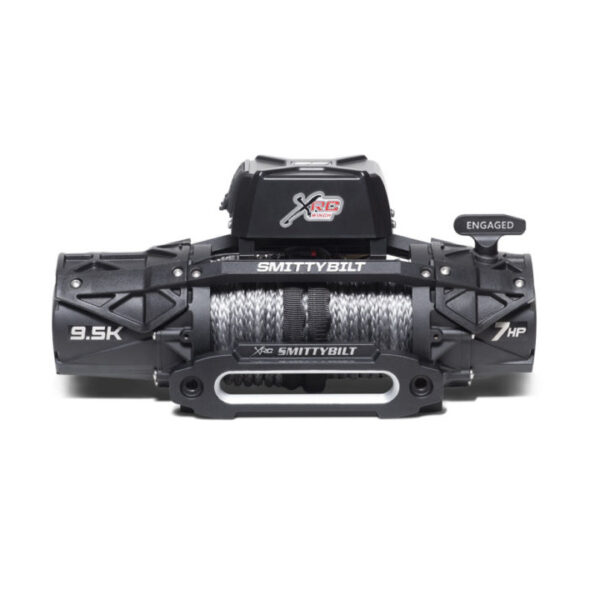

Smittybilt XRC 9.5 Comp Winch
$649.99
Included with the XRC Gen3 winch:
- Forged winch hook
- Steel cable w/ Roller Fairlead
- Moveable control box bracket
** 3rd party products are subject to shipping fees * *
** 3rd party products are subject to manufacturer lead times * *
Out of stock
| GENERAL SPECIFICATIONS | XRC GEN3 9.5K COMP SERIES |
|---|---|
| Cable/Rope Type | Synthetic |
| Part Number | 98695 |
| Regular List Price | $579.99 |
| Fairlead Type | Hawse |
| Rated Line Pull | 9500lb |
| Motor | 7.0 HP |
| NEW! Load Indicator System | YES |
| NEW! Controller Flashlight | YES |
| NEW! Aluminum Tie Bar Light | YES |
| NEW! Detachable Body Armor | YES |
| NEW! 12 Volt Power Outlet | YES |
| NEW! Control Box DRL | YES |
| NEW! High-Visibility Clutch Lever | YES |
| NEW! Dual-Magnet Controller Mount | YES |
| Moveable Control Box | YES |
| Int’l Waterproof Rating | IP67 |
| Electrical Warranty | 5 years |
| Mechanical Warranty | LIFETIME |
| LINE SPEED/AMP DRAW | ||||||
|---|---|---|---|---|---|---|
| Line Pull – lb | 0 | 2000 | 4000 | 6000 | 8000 | 9500 |
| Line Pull – Kg | 0 | 910 | 1814 | 2720 | 3625 | 4536 |
| Line Speed – Ft/min | 27.3 | 18.3 | 15.4 | 12.8 | 10 | 7.5 |
| Line Speed – M/min | 10.8 | 6.30 | 4.35 | 3.45 | 2.90 | 2.25 |
| Motor – AMPS | 80 | 160 | 220 | 280 | 340 | 385 |
| LINE PULL/CABLE CAPACITY | ||||
|---|---|---|---|---|
| Layers of Cable | 1 | 2 | 3 | 4 |
| Rated Line Pull, per Layer – lb | 9500 | 8435 | 7640 | 7086 |
| Rated Line Pull, per Layer – kg | 4305 | 3822 | 3460 | 3212 |
| Cumulative Cable – ft | 16 | 42 | 72 | 94 |
| Capacity – m | 5 | 12 | 21 | |
