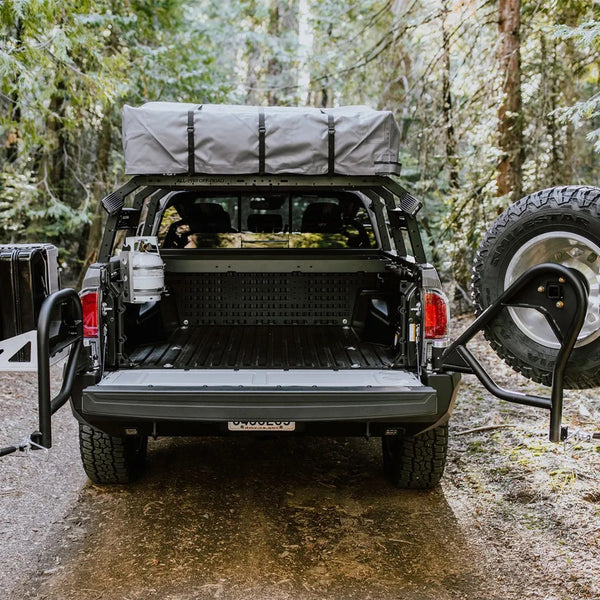

2016-Current Tacoma Dual Swing Out Bumper All-Pro’s 2016-Current Tacoma Dual Swing Out Bumper combines an aggressively styled high-clearance bumper with space-saving storage for your spare tire and extra gear. Free up valuable storage space without sacrificing bed accessibility. All-Pro’s Dual arm design dramatically decreases the clearance radius required, virtually eliminating the chance of interfering with anything you may have in tow. Each arm has (2) open locking positions at 90-degrees and 135-degrees. The modular bolt-together system requires no welding for installation.

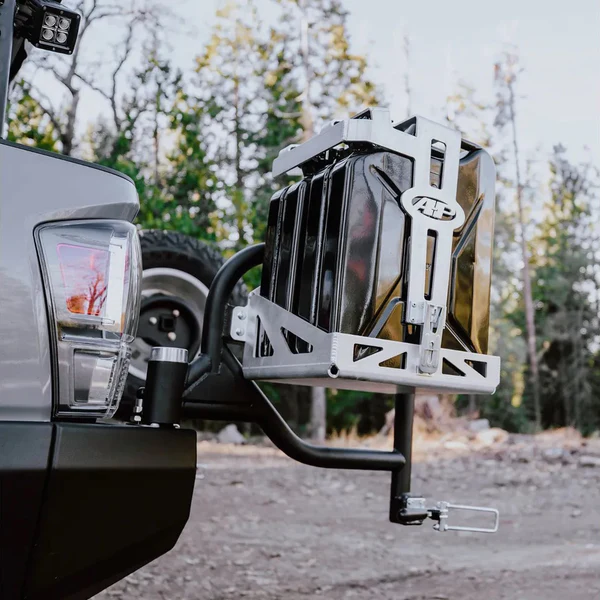

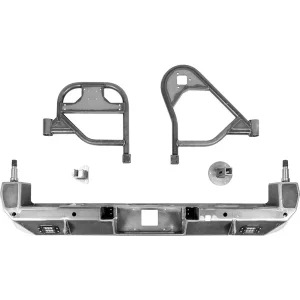

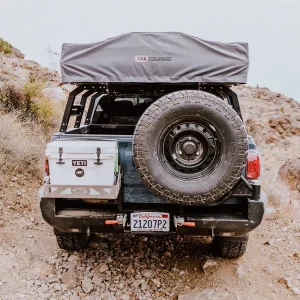

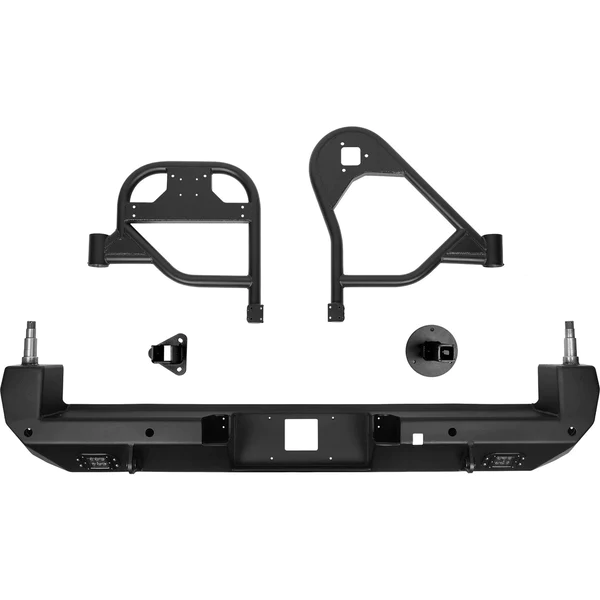

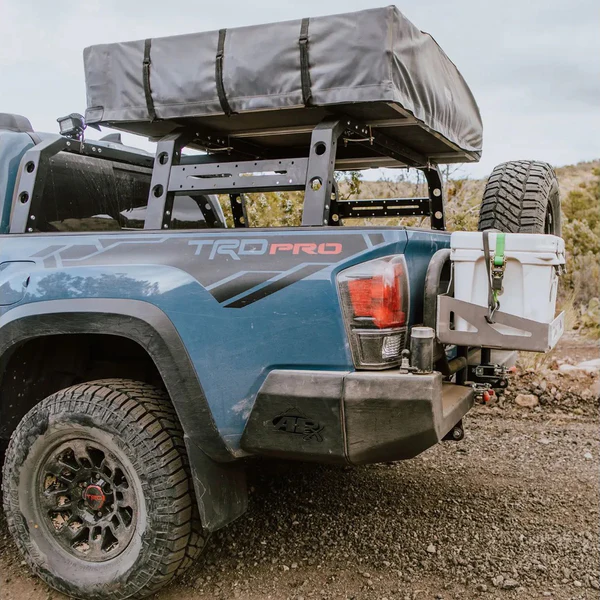

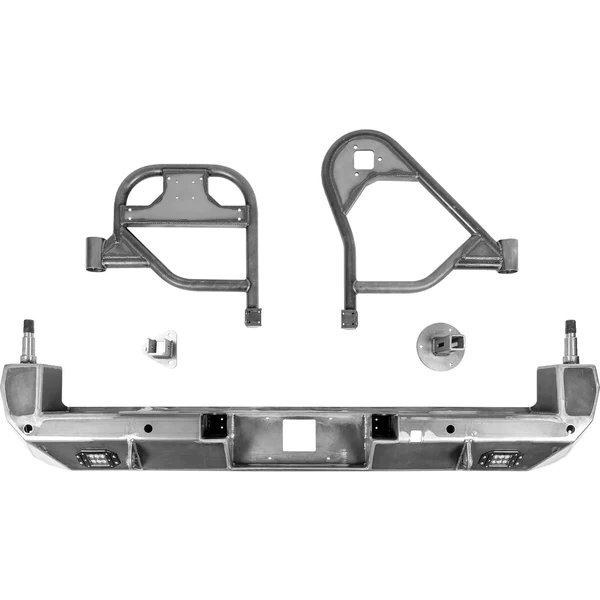

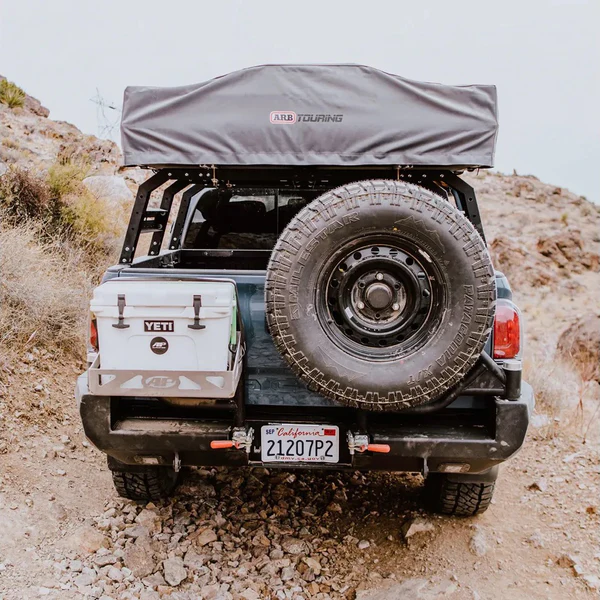

The right-side arm can accommodate an oversized spare up to 37″ while the left-side arm offers numerous storage options, like our fully compatible Swing Out Bumper Ice Chest Holder (see RELATED PRODUCTS down below). This kit includes the bumper with integrated rear-facing LED lights, the spare tire swing-out arm, spare tire mount, and the accessory swing-out arm along with all installation hardware. This bumper is available in bare steel or a durable black powder coat. Although this bumper comes fully sanded and ready for paint, the mill scale will vary depending on the lot.

NOTE: Your factory tow hitch will not work with this bumper. If you need to use a tow hitch with this bumper, you will need to install the 2016-Current Tacoma Receiver Hitch (sold separately – see RELATED PRODUCTS down below).

Specifications:

• Constructed From 3/16-inch ASTM A36 structural steel, 3/8-inch and 1/2-inch thick gussets, and 1020 DOM Tubing
• Available in Bare or Black Powder Coat finishes
• High-clearance design with improved departure angles
• 100% bolt-on installation

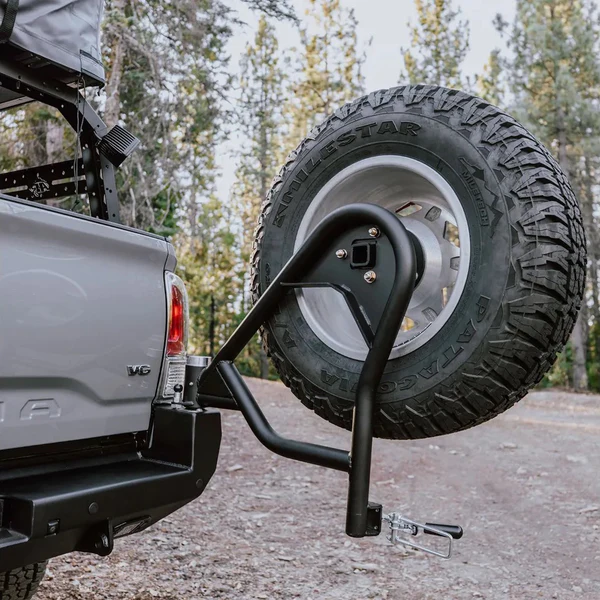

• Dual swing-out arms with fully-sealed greaseable tapered roller bearing hinge Spare tire arm DOM tubing is .188 wall to reduce vibration and accommodates up to 37″ tire
• Accessory arm DOM tubing is .120 wall and accommodates optional, interchangeable aluminum accessory carriers
• Swing-out arm design includes automatically locking slam latches with stainless steel wear plates–each arm locks open at either 90-degrees or 135-degrees.
• The bumper includes integrated rear-facing LED lights and a built-in mounting bracket to relocate the backup camera
• If a tow hitch is required, order an optional 2016-Current Tacoma Receiver Hitch. The factory hitch will not work with this bumper!
• Includes flip-up license plate holder
